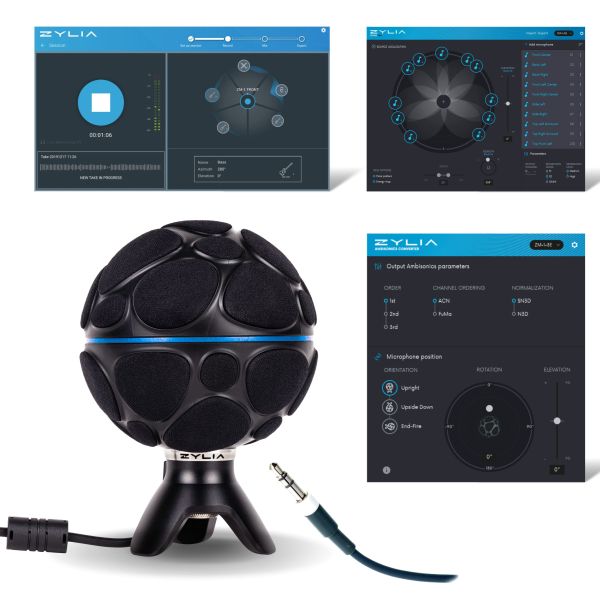

ZYLIA ZM-1S PRO set
ZYLIA ZM-1S - the 3rd order Ambisonics microphone array with 19 calibrated capsules (MEMS sensors), high-end 24-bit recording resolution, and timecode input channel allowing for synchronization of multiple ZM-1S microphones as well as other devices connected to recording system such as video cameras.
Software included:
ZYLIA Studio software, ZYLIA Studio PRO plugin, ZYLIA Ambisonics Converter software, and plugin.
Main features of the microphone:
High quality 360 audio recording - 3rd order Ambisonics
19 microphone omnidirectional digital MEMS capsules distributed on a sphere
Timecode input channels
Multiple ZM-1S timecode synchronization
LED ring status indicator informing about recording status
48 kHz / 24 bit recording
USB connectivity makes the process of recording easy
Recording - ZYLIA Studio PRO plugin, ZYLIA 6DoF VR/AR software or any DAW (Digital Audio Workstation)
Timecode input
It allows for the synchronization of multiple ZM-1S microphones as well as other devices connected to the recording system such as video cameras.
Timecode input specification:
Can be controlled by an external timecode signal
Audio line input
Full-Scale voltage input (single-ended): 2.1 VRMS
ADC sampling rate: 48 kHz
ADC bit resolution: 24 bit
Timecode support:
SMPTE Timecode Rates: 23.98, 24, 25, 29.97, 29.97DF and 30 FPS
General audio
Support for multiple ZM-1S recording system (ZYLIA 6DoF VR/AR set)
ZM-1S contains a dedicated chip that allows for the connection of multiple ZM-1S through the USB interface in a single computer. That is, signals from multiple ZM-1S microphones can be aggregated and streamed through a single USB interface. It is possible to connect around 20 ZM-1S to a single USB 2.0 interface. However, if a computer has more USB controllers then it is possible to aggregate more signals. In that case, the only limit for connecting ZM-1S is hard disk speed. For modern SSD disks, it should be possible to record more than 150 ZM-1S connected to a single computer.
Typically, each USB port on laptops has a dedicated USB controller.
Solid case
ZM-1S
USB & Jack cables
Stand & adapter
Technical parameters
Number of microphones
19 digital MEMS sensors
Timecode input channels
1 audio input (Jack 3.5 mm)
Timecode input specification
Act as slave device
Audio line input
Full-Scale voltage input (single-ended): 2.1 VRMS
ADC sampling rate: 48 kHz
ADC bit resolution: 24 bit
Timecode support
SMPTE Timecode Rates: 23.98, 24, 25, 29.97, 29.97 DF and 30 FPS
General audio
Multiple ZM-1S timecode synchronization
Yes
Support for Multiple ZM-1S recording system (ZYLIA 6DoF VR/AR set)
Yes
Dimensions (including stand)
height - 155 mm (6.1’’)
length - 103 mm (4’’)
weight - 470 g (16.6 ounces)
Connection with computer
USB 2.0 (type A) to microUSB 2.0 (type B)
Supply voltage
5 V DC (from USB)
Current and/or power
max. 0.5 A 2.5 W
0,15 – 0,26 A (+/- 0,01 A)
Frequency range
20 – 20 000 Hz
Dynamic range
105 dB
Signal to noise ratio (SNR)
69 dB(A)
Total harmonic distortions (THD)
<1% up to 128dB SPL
Acoustic overload point
130 dB SPL
Directivity
omnidirectional
Noise floor
-105 dB FS(A)
Sample rate
48 kHz
Bit resolution
24-bit
